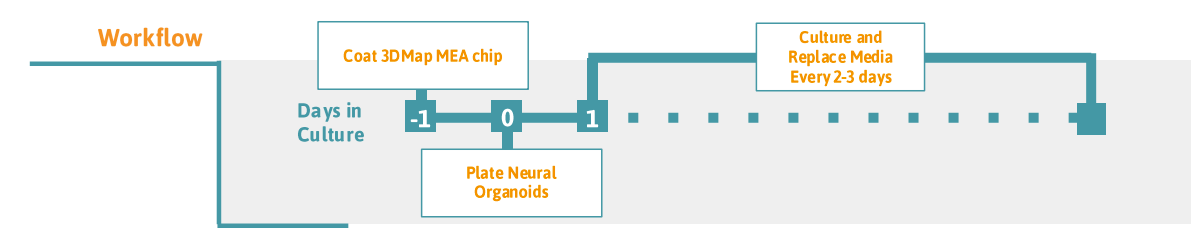

Neural Organoids on 3DMap MEA Protocol

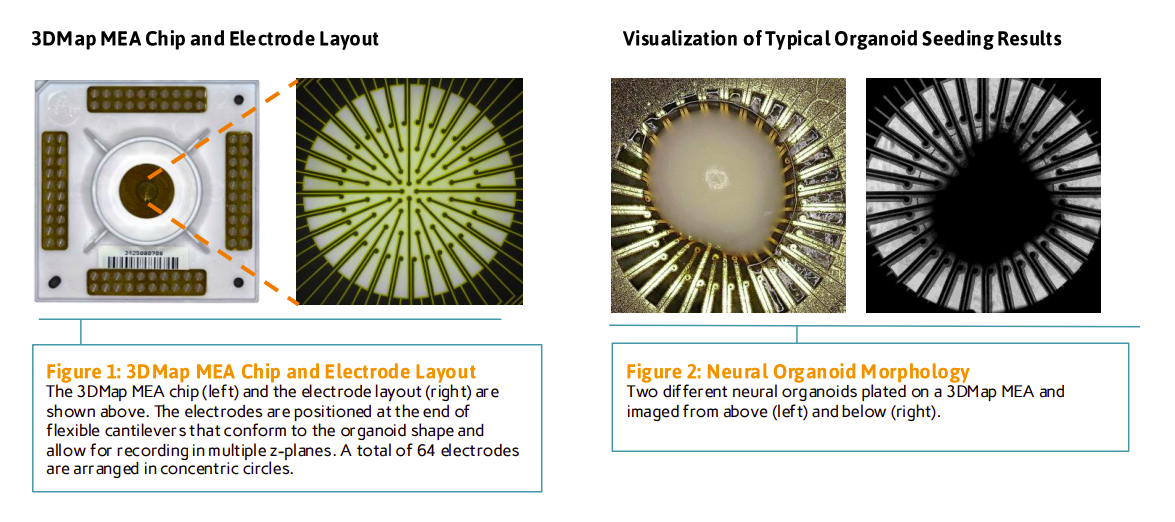

Preparing the MEA Plate

1. Place a 10-20 μl of stock Biolaminin 332 (or neural coating of choice) over the recording electrode area of each well in the MEA plate.
2. Incubate the LN332-coated 3DMap chip overnight at 4°C or for at least 60 minutes at 37°C.

Culturing and Plating Neural Organoids

1. Aspirate the LN332 coating.
2. Use a 1mL pipette and cut off the tip of the pipette tip using a sterile razor blade or scissors, between 10-15 mm from the end of the tip. The aperture should be approximately 2-3mm inner diameter to provide an opening adequate for pulling one or more organoids into the pipette tip with minimal shear stress.
3. Allow the organoid(s) to settle to the end of the pipette tip by holding the pipette vertically and gently tapping the pipette tip.

4. Once they have accumulated at the pipette tip end, dispense in a small volume over the array and position the organoid over the array.

   Tip: Try to keep the volume low so as the confine the organoids to the array.

5. Organoids can be repositioned if misplaced by carefully moving them with a new pipette tip. This can be achieved with either of 2 methods: a) use the pipette tip to gently squirt media at the organoids or drop it near them to maneuver them b) gently physically push them with a pipette tip

6. Once the organoids are in place, adda 30 μl drop of Matrigel on top of the organoid and incubate the MEA plate in a cell culture incubator at 37°C, 5% CO₂ for 20 minutes.

   Tip: Before Matrigel addition, gently draining the media from the well and a short incubation (5 minutes) at 37°C can aid in attachment. However this should only be a temporary step – if incubated dry for too long, viability of the organoids may decrease.

7. Gently add medium to 3DMap chip. Working volume for the chip is generally 1 mL, and adding media 200 μl at time to reach 1 mL total volume is recommended.
8. Incubate in a cell culture incubator at 37°C, 5% CO₂.
9. Replace media every 2-3 days, or at whatever interval is optimal for your organoid’s health.
10. Record neural activity on the Maestro using the MEA Creator Kit. Some organoids may show activity shortly after plating, but many organoids require 1-2 weeks of culture on the MEA before robust activity is present.

Required Materials

Consumables

Equipment
